Abstract Factory Pattern: Design Consistent Object Families for Maintainable Code

The Challenge of Inconsistent Object Families

Picture this: You've mastered the Factory Method pattern for creating individual objects like characters, weapons, and armor. Your object creation system is flexible and extensible. But now you need to ensure that entire families of related objects work together seamlessly: whether it's a complete UI theme, a database driver set, or a game world ecosystem.

You start by mixing and matching components: a Medieval Warrior with a Laser Gun, or a Sci-Fi Soldier with a Medieval Sword. Suddenly, your application's logic is a tangled mess, and every new world or theme means rewriting huge chunks of code. The Factory Method pattern solved individual object creation, but now you need to ensure entire families of objects work together consistently.

How do you ensure that every component in a family fits together seamlessly, without endless if-else statements or fragile type checks? The Abstract Factory pattern is your answer. It extends the Factory Method concept by creating families of related objects: UI components, database drivers, or game elements: all guaranteed to belong to the same family. The result? Consistent, scalable systems and a codebase that welcomes new themes and platforms with open arms.

Understanding the Abstract Factory Pattern

The Abstract Factory pattern provides an interface for creating families of related or dependent objects without specifying their concrete classes.

This pattern is essential when your system needs to enforce Consistency across products. Instead of creating a Medieval Warrior and accidentally arming them with a Laser Gun, the Abstract Factory ensures that all components belong to the same world.

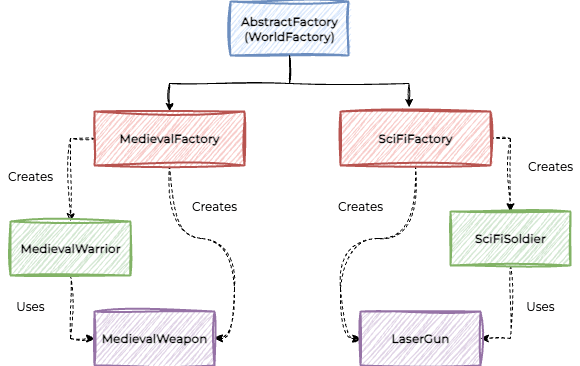

Core Components

• Abstract Product Interfaces: Interfaces for each product type (e.g., GameCharacter, Weapon, Armor).

• Concrete Products: Implementations for each world (e.g., MedievalWarrior, MedievalSword, MedievalArmor).

• Abstract Factory: Declares creation methods for each product family (characters, weapons, environments).

• Concrete Factories: Implement the creation methods for specific worlds/themes.

Complete Java Implementation

Let's build a world generator for an RPG using the Abstract Factory pattern, extending from our Factory Method implementation to create complete character equipment sets.

Abstract Product Interfaces

// Extending from Factory Method pattern: same character interface
public interface GameCharacter {
    void attack();
    void defend();
    int getHealth();
}

// New product types for complete equipment sets
public interface Weapon {
    void use();
}

public interface Armor {
    void equip();
}

Concrete Products

// Medieval World: Extending Factory Method characters
public class MedievalWarrior implements GameCharacter {
    private int health = 120;

    @Override
    public void attack() {
        System.out.println("Medieval Warrior swings mighty sword! Dealing 25 damage.");
    }

    @Override
    public void defend() {
        System.out.println("Medieval Warrior raises shield, reducing incoming damage by 50%");
    }

    @Override
    public int getHealth() { return health; }
}

public class MedievalSword implements Weapon {
    @Override
    public void use() {
        System.out.println("Swinging the medieval broadsword!");
    }
}

public class MedievalArmor implements Armor {
    @Override
    public void equip() {
        System.out.println("Equipping medieval plate armor!");
    }
}

// Sci-Fi World: New character types for this world
public class SciFiSoldier implements GameCharacter {
    private int health = 100;

    @Override
    public void attack() {
        System.out.println("Sci-Fi Soldier fires laser gun! Dealing 40 damage.");
    }

    @Override
    public void defend() {
        System.out.println("Sci-Fi Soldier activates energy shield, blocking 60% damage");
    }

    @Override
    public int getHealth() { return health; }
}



public class LaserGun implements Weapon {
    @Override
    public void use() {
        System.out.println("Firing the laser gun!");
    }
}

public class SciFiArmor implements Armor {
    @Override
    public void equip() {
        System.out.println("Equipping nano-tech armor!");
    }
}

Abstract Factory

public interface WorldFactory {
    GameCharacter createCharacter();
    Weapon createWeapon();
    Armor createArmor();
}

Concrete Factories

public class MedievalFactory implements WorldFactory {
    @Override
    public GameCharacter createCharacter() {
        return new MedievalWarrior();
    }

    @Override
    public Weapon createWeapon() {
        return new MedievalSword();
    }

    @Override
    public Armor createArmor() {
        return new MedievalArmor();
    }
}

public class SciFiFactory implements WorldFactory {
    @Override
    public GameCharacter createCharacter() {
        return new SciFiSoldier();
    }

    @Override
    public Weapon createWeapon() {
        return new LaserGun();
    }

    @Override
    public Armor createArmor() {
        return new SciFiArmor();
    }
}

Client Code

public class GameLauncher {
    public static void main(String[] args) {
        // Create complete Medieval equipment set
        WorldFactory medievalFactory = new MedievalFactory();
        GameCharacter medievalHero = medievalFactory.createCharacter();
        Weapon medievalWeapon = medievalFactory.createWeapon();
        Armor medievalArmor = medievalFactory.createArmor();

        System.out.println("=== Medieval World Equipment Set ===");
        medievalHero.attack();
        medievalWeapon.use();
        medievalArmor.equip();
        medievalHero.defend();

        System.out.println("\n=== Sci-Fi World Equipment Set ===");
        // Create complete Sci-Fi equipment set
        WorldFactory sciFiFactory = new SciFiFactory();
        GameCharacter sciFiHero = sciFiFactory.createCharacter();
        Weapon sciFiWeapon = sciFiFactory.createWeapon();
        Armor sciFiArmor = sciFiFactory.createArmor();

        sciFiHero.attack();
        sciFiWeapon.use();
        sciFiArmor.equip();
        sciFiHero.defend();
    }
}

Expected Output:

=== Medieval World Equipment Set ===
Medieval Warrior swings mighty sword! Dealing 25 damage.
Swinging the medieval broadsword!
Equipping medieval plate armor!
Medieval Warrior raises shield, reducing incoming damage by 50%

=== Sci-Fi World Equipment Set ===
Sci-Fi Soldier fires laser gun! Dealing 40 damage.
Firing the laser gun!
Equipping nano-tech armor!
Sci-Fi Soldier activates energy shield, blocking 60% damage

🚀 Get the Complete Implementation

The full code with extensible world factories is available in our Design Patterns Repository.

# Clone and run the complete demo
git clone https://github.com/shift-elevate/design-patterns.git
cd design-patterns
mvn test -Dtest=AbstractFactoryTest

Adding New Worlds

Here's where the Abstract Factory pattern truly shines. The repository demonstrates how adding a new world (like Steampunk) becomes straightforward:

1. Create new product implementations (SteampunkWarrior, SteamPistol, SteamArmor)

2. Add a new concrete factory (SteampunkFactory) implementing WorldFactory

3. No modifications to existing code required!

This demonstrates the Open Closed Principle in action: your system remains open for extension but closed for modification. It's like adding a new world to your game without breaking existing worlds.

Try it yourself: Fork the repository and add your own world with unique characters, weapons, and armor!

From Factory Method to Abstract Factory: The Evolution

Notice how this implementation builds upon the Factory Method pattern? Here's the key evolution:

Factory Method Pattern (Previous)

• Single Object Creation: Each factory creates one type of object

• Example: WarriorFactory creates only Warrior characters

• Focus: Flexible individual object creation

Abstract Factory Pattern (Current)

• Family Creation: Each factory creates multiple related objects

• Example: MedievalFactory creates MedievalWarrior, MedievalSword, and MedievalArmor

• Focus: Ensuring all objects belong to the same family/world

Key Differences

Real World Analogy

Think of it like building a house:

• Factory Method: You have specialists for each component (plumber, electrician, carpenter)

• Abstract Factory: You have contractors for complete house styles (Modern Contractor, Victorian Contractor, each providing all components in that style)

Real World Examples

1. GUI Toolkits

Frameworks like Java Swing and Qt use Abstract Factory to create UI components for different operating systems. The same code can generate Windows, macOS, or Linux widgets, ensuring a consistent look and feel.

// Pseudocode
WidgetFactory factory = OS.isWindows() ? new WindowsFactory() : new MacFactory();
Button button = factory.createButton();
TextBox textBox = factory.createTextBox();

2. Database Drivers

Database abstraction layers use Abstract Factory to provide consistent APIs for different databases. You can switch from MySQL to PostgreSQL by swapping factories, not rewriting your queries.

3. Theming Systems

Modern applications use Abstract Factory to generate themed components (dark mode, light mode, custom branding) without duplicating logic.

When to Use Abstract Factory Pattern

Ideal Scenarios:

• You need to enforce consistency across families of related objects.

• Your system must support multiple themes, platforms, or product lines.

• You want to isolate client code from concrete class implementations.

Skip It When:

• You only have a single product family.

• Object consistency isn’t a concern.

Next Steps: Apply Abstract Factory in Your Project

1. Start with Factory Method: If you haven't already, implement the Factory Method pattern for individual object creation.

2. Identify Product Families: Group related objects that must be used together (characters + weapons + armor).

3. Define Abstract Interfaces: For each product type, ensuring they work together.

4. Implement Concrete Factories: For each family or theme, creating all related objects.

5. Refactor Client Code: Use factories, not direct instantiation.

6. Test Consistency: Ensure no cross-family mismatches.

When to Choose Factory Method vs Abstract Factory

• Use Factory Method when you need flexible creation of individual objects

• Use Abstract Factory when you need to ensure consistency across multiple related objects

The Abstract Factory pattern empowers you to build scalable, maintainable systems where every component fits perfectly. Whether you're designing game worlds, UI themes, or cross platform apps, this pattern ensures your creations are always in sync.
