Bulkhead Pattern: Isolating Resources for System Resilience

In distributed systems, a single failing service can consume all available resources, causing system wide failures. The Bulkhead pattern isolates resources into separate pools, ensuring that failures in one area don't cascade to other parts of the system, maintaining overall system stability and availability.

This pattern is inspired by ship bulkheads that prevent water from flooding the entire vessel when one compartment is breached. In software systems, it provides similar protection by isolating different types of operations, services, or resources.

This guide walks you through the Bulkhead pattern from concept to production ready implementation, covering architectural principles, semaphore based resource isolation, and real world deployment strategies.

• Understanding the Bulkhead Pattern

• Implementing the Bulkhead Pattern

• Real-World Considerations for Production Systems

• Performance and Scalability Considerations

Understanding the Bulkhead Pattern

The Bulkhead pattern partitions system resources into isolated groups, preventing a single failure from consuming all available resources. This isolation ensures that critical operations continue even when non-critical services experience issues.

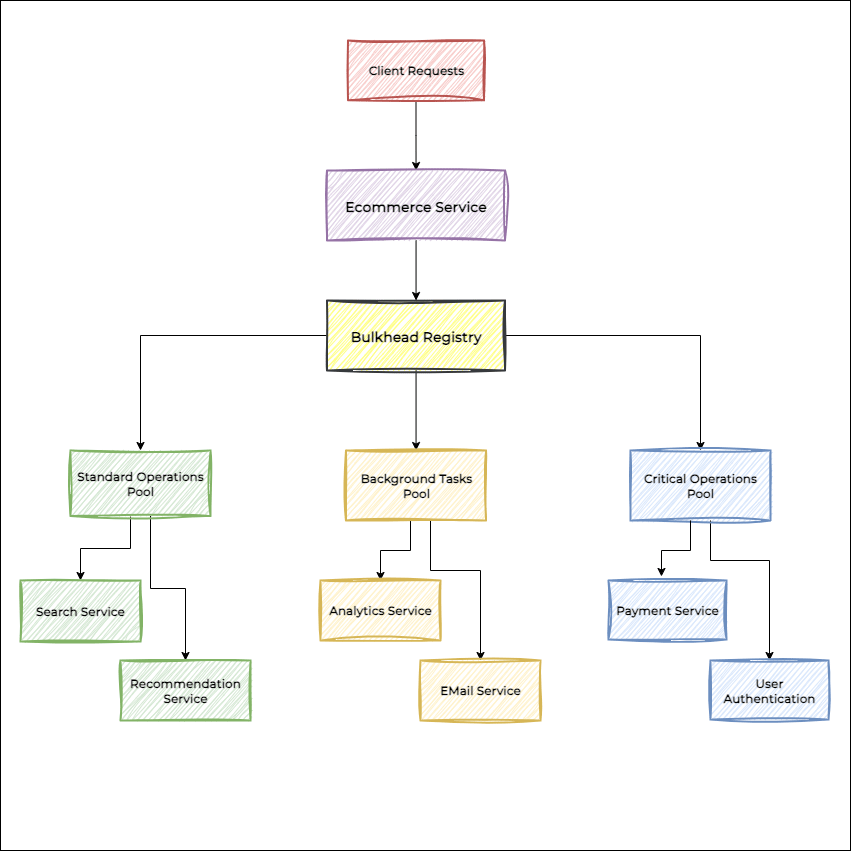

Core Architecture

Key Benefits

• Failure Isolation: Prevents single service failures from affecting the entire system

• Resource Protection: Ensures critical operations have dedicated resources

• Predictable Performance: Maintains consistent response times for critical services

• Graceful Degradation: Allows non-critical services to fail without system-wide impact

• Scalability: Enables independent scaling of different service types

Implementing the Bulkhead Pattern

Let's build a comprehensive bulkhead implementation that manages different types of operations with proper resource isolation and monitoring.

Note on Implementation

For clarity and ease of understanding, this implementation uses Object return types with explicit casting instead of Java generics. While a production implementation would typically use generics (<T>) for type safety, we've chosen this simpler approach to focus on the core bulkhead concepts without the added complexity of generic type parameters. This makes the pattern easier to learn and understand for developers new to bulkheads.

Our bulkhead implementation uses Java's Semaphore to control concurrent access to resources. Think of a semaphore as a ticket counter with a fixed number of tickets (permits). When a request arrives, it must acquire a permit to proceed. If all permits are taken, the request either waits or gets rejected. When a request completes, it releases its permit back to the pool. For example, a semaphore with 10 permits allows exactly 10 concurrent operations, the 11th request must wait until one of the first 10 completes. This mechanism provides the resource isolation that makes the Bulkhead pattern effective.

Core Bulkhead Implementation

The Bulkhead Class

The main class that enforces resource limits using a semaphore:

public class Bulkhead {
    private final String name;
    private final Semaphore semaphore;
    private final AtomicInteger activeRequests = new AtomicInteger(0);
    private final AtomicInteger rejectedRequests = new AtomicInteger(0);
    private final AtomicLong totalRequests = new AtomicLong(0);
    private final AtomicLong totalExecutionTime = new AtomicLong(0);

    public Bulkhead(String name, int maxConcurrentRequests) {
        this.name = name;
        this.semaphore = new Semaphore(maxConcurrentRequests);
    }

    // Execute operation with return value
    public Object executeWithResult(Callable<Object> operation) throws Exception {
        long startTime = System.currentTimeMillis();
        totalRequests.incrementAndGet();

        // Try to acquire permit - reject if not available within timeout
        if (!semaphore.tryAcquire(100, TimeUnit.MILLISECONDS)) {
            rejectedRequests.incrementAndGet();
            throw new BulkheadRejectedException("Bulkhead '" + name + "' capacity exceeded");
        }

        try {
            activeRequests.incrementAndGet();
            return operation.call();
        } finally {
            activeRequests.decrementAndGet();
            semaphore.release();
            totalExecutionTime.addAndGet(System.currentTimeMillis() - startTime);
        }
    }

    // Execute operation without return value (simpler version)
    public void execute(Runnable operation) throws Exception {
        long startTime = System.currentTimeMillis();
        totalRequests.incrementAndGet();

        if (!semaphore.tryAcquire(100, TimeUnit.MILLISECONDS)) {
            rejectedRequests.incrementAndGet();
            throw new BulkheadRejectedException("Bulkhead '" + name + "' capacity exceeded");
        }

        try {
            activeRequests.incrementAndGet();
            operation.run();
        } finally {
            activeRequests.decrementAndGet();
            semaphore.release();
            totalExecutionTime.addAndGet(System.currentTimeMillis() - startTime);
        }
    }

    // Get current metrics
    public BulkheadMetrics getMetrics() {
        return new BulkheadMetrics(
            name,
            semaphore.availablePermits(),
            semaphore.getQueueLength(),
            activeRequests.get(),
            rejectedRequests.get(),
            totalRequests.get(),
            calculateAverageExecutionTime()
        );
    }

    private double calculateAverageExecutionTime() {
        long total = totalRequests.get();
        return total > 0 ? (double) totalExecutionTime.get() / total : 0.0;
    }

    // Getters for monitoring
    public String getName() { return name; }
    public int getAvailablePermits() { return semaphore.availablePermits(); }
    public int getActiveRequests() { return activeRequests.get(); }
    public int getRejectedRequests() { return rejectedRequests.get(); }
    public long getTotalRequests() { return totalRequests.get(); }
}

Exception and Metrics

Custom exception and metrics record for tracking bulkhead health:

public class BulkheadRejectedException extends RuntimeException {
    public BulkheadRejectedException(String message) {
        super(message);
    }
}

// Record for bulkhead metrics (Java 14+)
public record BulkheadMetrics(
    String name,
    int availablePermits,
    int queuedRequests,
    int activeRequests,
    int rejectedRequests,
    long totalRequests,
    double averageExecutionTime
) {}

Centralized Registry

The registry manages multiple bulkheads in one place:

public class BulkheadRegistry {
    private final Map<String, Bulkhead> bulkheads = new ConcurrentHashMap<>();

    // Register a new bulkhead with specified capacity
    public Bulkhead register(String name, int maxConcurrentRequests) {
        Bulkhead bulkhead = new Bulkhead(name, maxConcurrentRequests);
        bulkheads.put(name, bulkhead);
        return bulkhead;
    }

    // Get an existing bulkhead by name
    public Bulkhead get(String name) {
        Bulkhead bulkhead = bulkheads.get(name);
        if (bulkhead == null) {
            throw new IllegalArgumentException("Bulkhead '" + name + "' not found");
        }
        return bulkhead;
    }

    // Get all registered bulkhead names
    public Set<String> getAllNames() {
        return new HashSet<>(bulkheads.keySet());
    }

    // Get metrics for all bulkheads
    public Map<String, BulkheadMetrics> getAllMetrics() {
        Map<String, BulkheadMetrics> metrics = new HashMap<>();
        bulkheads.forEach((name, bulkhead) -> metrics.put(name, bulkhead.getMetrics()));
        return metrics;
    }

    // Check if a bulkhead exists
    public boolean exists(String name) {
        return bulkheads.containsKey(name);
    }

    // Get total number of registered bulkheads
    public int size() {
        return bulkheads.size();
    }
}

Practical Implementation: E-commerce Service

Application Service Layer

The main service that coordinates bulkheads and business operations:

public class EcommerceService {
    private final BulkheadRegistry registry;
    private final PaymentService paymentService;
    private final SearchService searchService;

    public EcommerceService() {
        // Create centralized bulkhead registry
        this.registry = new BulkheadRegistry();

        // Register bulkheads with different capacity limits
        registry.register("payment", 10);      // Max 10 concurrent payments (critical)
        registry.register("search", 20);       // Max 20 concurrent searches (standard)
        registry.register("notification", 5);  // Max 5 concurrent notifications (background)

        // Initialize services
        this.paymentService = new PaymentService();
        this.searchService = new SearchService();
    }

    // Critical operations using payment bulkhead
    public PaymentResult processPayment(PaymentRequest request) throws Exception {
        Object result = registry.get("payment").executeWithResult(() -> {
            return paymentService.processPayment(request);
        });
        return (PaymentResult) result;
    }

    // Standard operations using search bulkhead
    public List<Product> searchProducts(String query) throws Exception {
        Object result = registry.get("search").executeWithResult(() -> {
            return searchService.search(query);
        });
        return (List<Product>) result;
    }

    // Get metrics for monitoring
    public BulkheadMetrics getPaymentMetrics() {
        return registry.get("payment").getMetrics();
    }

    public BulkheadMetrics getSearchMetrics() {
        return registry.get("search").getMetrics();
    }

    // Get all metrics from registry
    public Map<String, BulkheadMetrics> getAllMetrics() {
        return registry.getAllMetrics();
    }
}

Backend Services with Failure Simulation

Services that perform actual business logic with simulated failures:

// Note: Random failures (10-15%) demonstrate that bulkheads isolate failures,
// not just load. When search fails, payment operations continue unaffected.

public class PaymentService {
    public PaymentResult processPayment(PaymentRequest request) throws Exception {
        // Simulate payment processing
        Thread.sleep(200);

        if (Math.random() < 0.1) {
            throw new RuntimeException("Payment gateway temporarily unavailable");
        }

        return new PaymentResult("SUCCESS", "Payment processed successfully");
    }
}

public class SearchService {
    public List<Product> search(String query) throws Exception {
        // Simulate search operation
        Thread.sleep(300);

        if (Math.random() < 0.15) {
            throw new RuntimeException("Search service temporarily unavailable");
        }

        return Arrays.asList(
            new Product("1", "Product 1", 29.99),
            new Product("2", "Product 2", 39.99)
        );
    }
}

Data Models

public record PaymentRequest(String orderId, double amount, String currency) {}

public record PaymentResult(String status, String message) {}

public record Product(String id, String name, double price) {}

Real-World Considerations for Production Systems

1. Fallback Strategies for Graceful Degradation

When bulkheads reach capacity, return degraded responses instead of errors. Use cached data for searches, queue payment requests, or offer alternative options to maintain service availability.

public List<Product> searchProducts(String query) {
    try {
        Object result = registry.get("search").executeWithResult(() -> {
            return searchService.search(query);
        });
        return (List<Product>) result;
    } catch (BulkheadRejectedException e) {
        // Fallback: return cached results when bulkhead is at capacity
        logger.warn("Search bulkhead at capacity, returning cached results");
        return cacheService.getCachedSearchResults(query);
    }
}

2. Priority-Based Allocation

Create separate bulkheads for different criticality levels. For example, Payment processing (10 concurrent) gets dedicated resources, ensuring critical operations never starve even when non-critical services are under heavy load.

3. Asynchronous Execution

Use CompletableFuture for non-blocking background tasks like notifications and analytics to prevent them from consuming user facing request threads.

// Fire-and-forget: email sending happens asynchronously
public void sendNotification(String email, String message) {
    CompletableFuture.runAsync(() -> {
        try {
            notificationBulkhead.execute(() -> emailService.send(email, message));
        } catch (Exception e) {
            logger.error("Failed to send notification", e);
        }
    });
}

4. Semaphore vs Thread Pool

Semaphore isolation (our approach) is simpler and uses fewer resources. Consider thread pool isolation only when you need an absolute guarantee that services can't share threads.

Performance and Scalability Considerations

• Resource Allocation: Balance bulkhead capacity with system resources

• Thread Pool Management: Use appropriate thread pool sizes for different operation types

• Memory Usage: Monitor memory consumption of bulkhead implementations

• Monitoring Overhead: Balance monitoring granularity with performance impact

The Bulkhead pattern is essential for building resilient distributed systems. By implementing proper resource isolation with monitoring and fallback strategies, you can prevent single points of failure from affecting entire systems and maintain predictable performance for critical operations.
