Cache-Aside Pattern: Optimizing Performance with Application Managed Caching

In distributed systems, frequently accessed data can become a performance bottleneck when repeatedly fetched from slow data stores. The Cache-Aside pattern provides a solution by letting your application code decide when to use the cache, when to load from the database, and when to update the cache.

This pattern is essential for improving application performance and reducing load on backend data stores. By implementing intelligent caching mechanisms, you can significantly reduce response times and improve user experience while maintaining data consistency.

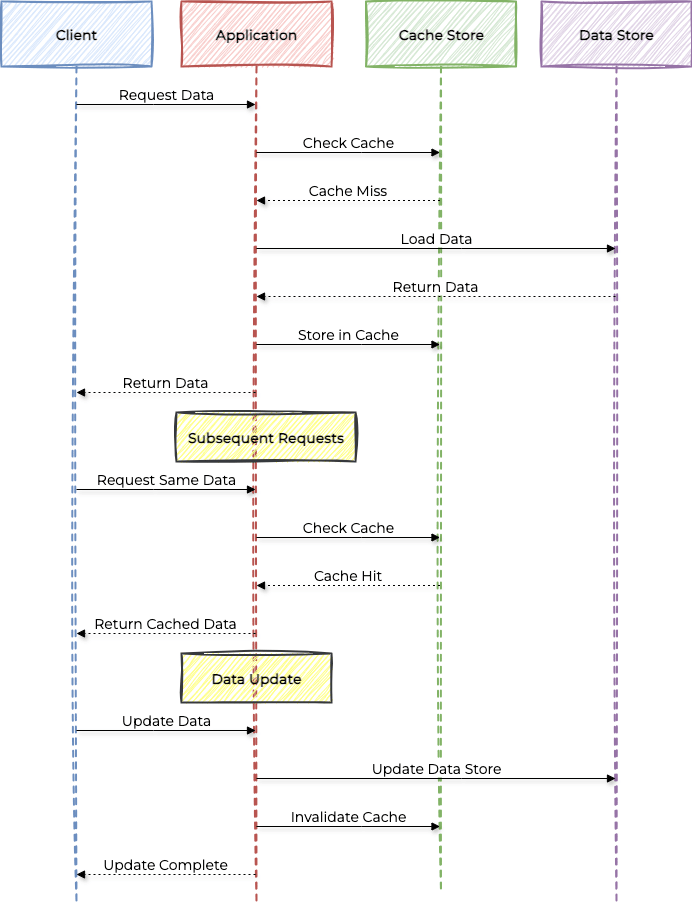

Understanding the Cache-Aside Pattern

Key Benefits

• Performance Improvement: Reduces data store load and response times.

• Scalability: Enables horizontal scaling by reducing backend pressure.

• Flexibility: Application controls cache behaviour and consistency.

• Cost Optimization: Reduces expensive data store operations.

• Resilience: Provides fallback when cache is unavailable.

Implementing the Cache-Aside Pattern in Java

Let's build a comprehensive cache-aside implementation that handles various caching scenarios with proper invalidation strategies and monitoring.

Implementation Overview

• Simple Cache Implementation: Basic cache with TTL support.

• Cache-Aside Service: Core service that manages cache operations.

• User Profile Service: Practical example demonstrating real-world usage.

• Usage Example: Complete demo showing cache hit/miss scenarios.

Simple Cache Implementation

public class SimpleCache {
    private final Map<String, CacheEntry> cache = new ConcurrentHashMap<>();
    private final long defaultTtlMs;

    public SimpleCache(long defaultTtlMs) {
        this.defaultTtlMs = defaultTtlMs;
    }

    public Object get(String key) {
        CacheEntry entry = cache.get(key);

        if (entry == null || entry.isExpired()) {
            cache.remove(key);
            return null;
        }

        return entry.getValue();
    }

    public void put(String key, Object value) {
        long expiryTime = System.currentTimeMillis() + defaultTtlMs;
        cache.put(key, new CacheEntry(value, expiryTime));
    }

    public void remove(String key) {
        cache.remove(key);
    }

    private static class CacheEntry {
        private final Object value;
        private final long expiryTime;

        public CacheEntry(Object value, long expiryTime) {
            this.value = value;
            this.expiryTime = expiryTime;
        }

        public Object getValue() {
            return value;
        }

        public boolean isExpired() {
            return System.currentTimeMillis() > expiryTime;
        }
    }
}

Cache-Aside Service

public class CacheAsideService {
    private final SimpleCache cache;
    private final UserRepository dataLoader;

    public CacheAsideService(SimpleCache cache, UserRepository dataLoader) {
        this.cache = cache;
        this.dataLoader = dataLoader;
    }

    public UserProfile get(String key) {
        // Try cache first
        Object cachedValue = cache.get(key);
        if (cachedValue != null) {
            return (UserProfile) cachedValue;
        }

        // Cache miss - load from data store
        try {
            UserProfile value = dataLoader.findById(key);
            if (value != null) {
                cache.put(key, value);
            }
            return value;
        } catch (Exception e) {
            System.err.println("Failed to load data for key " + key + ": " + e.getMessage());
            return null;
        }
    }

    public void put(String key, UserProfile value) {
        cache.put(key, value);
    }

    public void remove(String key) {
        cache.remove(key);
    }
}

User Profile Service

public class UserProfileService {
    private final CacheAsideService cacheService;
    private final UserRepository userRepository;

    public UserProfileService(UserRepository userRepository) {
        this.userRepository = userRepository;
        SimpleCache cache = new SimpleCache(300000); // 5 minutes TTL
        this.cacheService = new CacheAsideService(cache, userRepository);
    }

    public UserProfile getUserProfile(String userId) {
        return cacheService.get(userId);
    }

    public void updateUserProfile(String userId, UserProfile updatedProfile) {
        // Update in database
        userRepository.save(updatedProfile);
        // Update cache
        cacheService.put(userId, updatedProfile);
    }
}

// Simple data classes
public class UserProfile {
    private final String userId;
    private final String username;
    private final String email;

    public UserProfile(String userId, String username, String email) {
        this.userId = userId;
        this.username = username;
        this.email = email;
    }

    // Getters
    public String getUserId() { return userId; }
    public String getUsername() { return username; }
    public String getEmail() { return email; }
}

public class UserRepository {
    private final Map<String, UserProfile> users = new ConcurrentHashMap<>();

    public UserProfile findById(String userId) {
        // Simulate database load
        try {
            Thread.sleep(100); // Simulate database latency
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
        }
        return users.get(userId);
    }

    public UserProfile save(UserProfile userProfile) {
        users.put(userProfile.getUserId(), userProfile);
        return userProfile;
    }
}

Usage Example

public class Main {
    public static void main(String[] args) {
        // Setup
        UserRepository repository = new UserRepository();
        UserProfileService service = new UserProfileService(repository);

        // Add some test data
        UserProfile user = new UserProfile("user1", "john_doe", "[email protected]");
        repository.save(user);

        // First call - cache miss (loads from database)
        System.out.println("First call:");
        long start = System.currentTimeMillis();
        UserProfile result1 = service.getUserProfile("user1");
        long time1 = System.currentTimeMillis() - start;
        System.out.println("Time: " + time1 + "ms");

        // Second call - cache hit (loads from cache)
        System.out.println("Second call:");
        start = System.currentTimeMillis();
        UserProfile result2 = service.getUserProfile("user1");
        long time2 = System.currentTimeMillis() - start;
        System.out.println("Time: " + time2 + "ms");

        // Update user
        UserProfile updatedUser = new UserProfile("user1", "john_doe_updated", "[email protected]");
        service.updateUserProfile("user1", updatedUser);

        // Get updated user (should be from cache)
        UserProfile result3 = service.getUserProfile("user1");
        System.out.println("Updated user: " + result3.getUsername());
    }
}

When to Use Cache-Aside Pattern

Understanding when to apply the Cache-Aside pattern is crucial for making the right architectural decisions. Here's when it shines and when alternatives might be better:

✅ Ideal Scenarios:

• You need to improve performance for frequently accessed data.

• Your application has read-heavy workloads with repeated data access.

• You want to reduce load on expensive data stores (databases, APIs).

• You need flexibility in cache invalidation strategies.

• You're building distributed systems with multiple service instances.

❌ Skip It When:

• Your data changes very frequently and cache invalidation becomes complex.

• You have limited memory resources and can't afford cache overhead.

• Your data access patterns are unpredictable with low hit rates.

• You need real-time data consistency across all instances.

• The overhead of cache management outweighs performance benefits.

Performance and Scalability Considerations

• Cache Size Management: Implement appropriate eviction policies to prevent memory issues.

• TTL Strategy: Balance data freshness with cache hit rates.

• Cache Warming: Pre-populate cache with frequently accessed data.

• Monitoring: Track hit rates, miss rates, and cache size.

• Fallback Strategy: Handle cache failures gracefully.

The Cache-Aside pattern is essential for improving application performance in distributed systems. By implementing intelligent caching mechanisms with proper invalidation strategies and monitoring, you can significantly reduce response times and improve user experience while maintaining data consistency.
