Circuit Breaker Pattern: Preventing Cascading Failures in Distributed Systems
Shift Elevate Team
November 27, 2025
In distributed systems, a single failing service can bring down entire applications through cascading failures. The Circuit Breaker pattern acts as a protective barrier, monitoring service health and automatically failing fast when services become unhealthy, preventing resource exhaustion and system-wide outages.
This pattern is essential for building resilient microservices architectures where service dependencies can fail independently. By implementing intelligent circuit protection, you can maintain system stability even when individual services experience issues.
This guide walks you through the Circuit Breaker pattern from concept to production ready implementation, covering state management, fallback strategies, and real world deployment patterns.
Understanding the Circuit Breaker Pattern
The Circuit Breaker pattern monitors the health of external services and automatically prevents calls to failing services. It operates in three distinct states, each serving a specific purpose in maintaining system resilience.

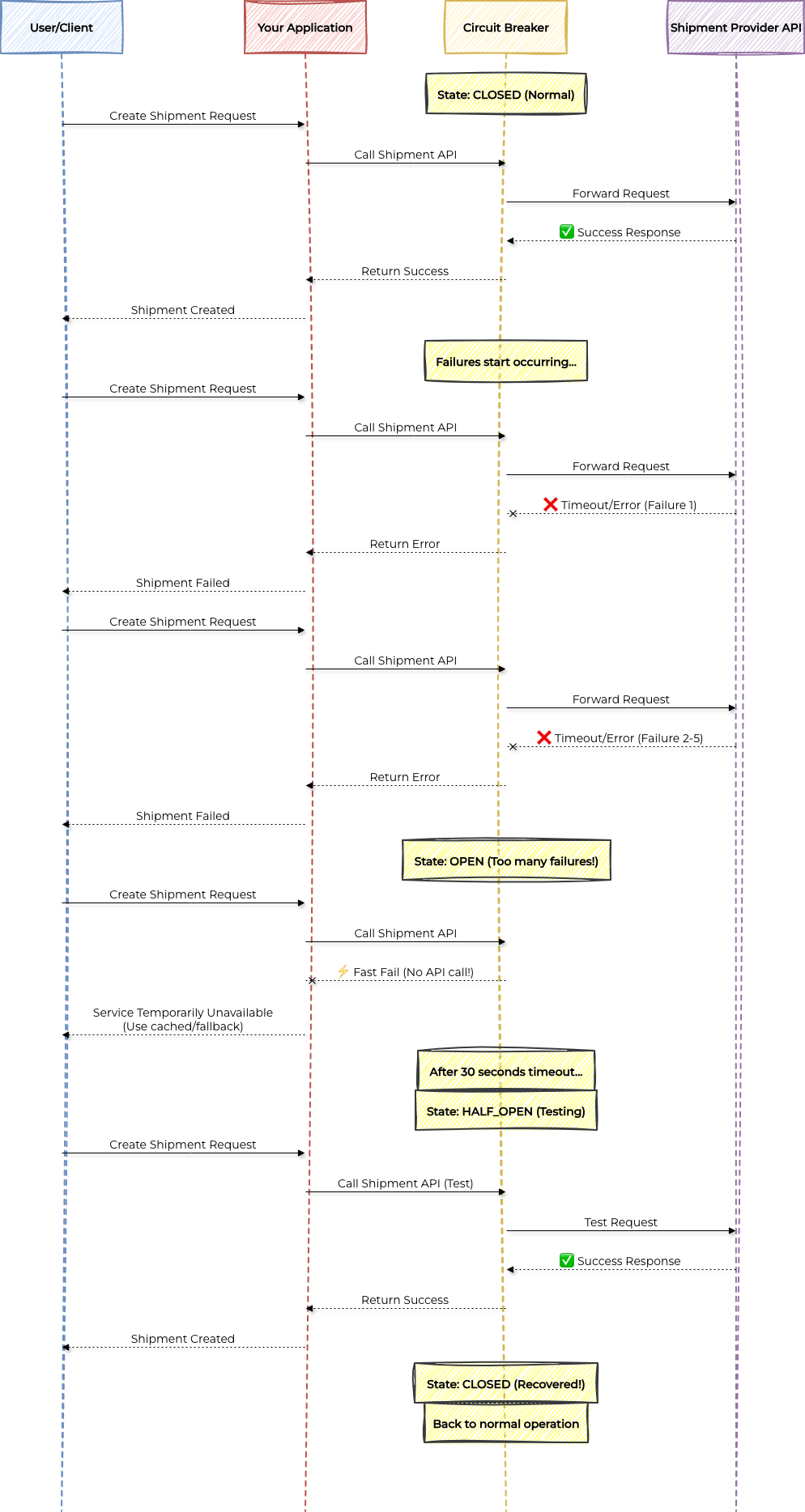

Circuit Breaker States
Circuit Breaker States
Key Benefits
Prevents Cascading Failures: Stops unhealthy services from affecting the entire system
Fast Failure Detection: Immediately identifies and isolates failing services
Automatic Recovery: Tests service health and automatically recovers when services are restored
Resource Protection: Prevents resource exhaustion from repeated failed calls
Graceful Degradation: Provides fallback mechanisms during service outages
Implementing the Circuit Breaker Pattern
Let's build a comprehensive circuit breaker implementation that handles various failure scenarios and provides monitoring capabilities.
Implementation Overview
Circuit Breaker Class: Simple circuit breaker with three states and failure tracking
Shipment Service Example: Real-world shipment booking with fallback handling
Supporting Classes: Basic data models for demonstration
Circuit Breaker Implementation
Define the Circuit States
public enum CircuitState {
CLOSED, // Normal operation - requests pass through
OPEN, // Too many failures - requests are blocked
HALF_OPEN // Testing if service recovered
}Create a Response Model
public class ShipmentResponse {
private final boolean success;
private final String message;
private final String trackingNumber;
public ShipmentResponse(boolean success, String message, String trackingNumber) {
this.success = success;
this.message = message;
this.trackingNumber = trackingNumber;
}
}Create the Circuit Breaker
public class CircuitBreaker {
private final int failureThreshold; // Max failures before opening
private final long timeoutDuration; // Wait time before testing recovery
private int failureCount = 0;
private CircuitState state = CircuitState.CLOSED;
private long lastFailureTime = 0;
public CircuitBreaker(int failureThreshold, long timeoutDuration) {
this.failureThreshold = failureThreshold;
this.timeoutDuration = timeoutDuration;
}
public ShipmentResponse executeShipment(ShipmentOperation operation) throws Exception {
// Check if circuit is OPEN
if (state == CircuitState.OPEN) {
if (shouldAttemptReset()) {
state = CircuitState.HALF_OPEN;
} else {
throw new CircuitBreakerOpenException("Service unavailable");
}
}
try {
ShipmentResponse result = operation.process();
onSuccess();
return result;
} catch (Exception e) {
onFailure();
throw e;
}
}
private boolean shouldAttemptReset() {
return System.currentTimeMillis() - lastFailureTime > timeoutDuration;
}
private void onSuccess() {
if (state == CircuitState.HALF_OPEN) {
// Service recovered - close the circuit
failureCount = 0;
state = CircuitState.CLOSED;
}
}
private void onFailure() {
failureCount++;
lastFailureTime = System.currentTimeMillis();
if (failureCount >= failureThreshold) {
state = CircuitState.OPEN;
}
}
public CircuitState getState() {
return state;
}
}
// Functional interface for shipment operations
interface ShipmentOperation {
ShipmentResponse process() throws Exception;
}
class CircuitBreakerOpenException extends Exception {
public CircuitBreakerOpenException(String message) {
super(message);
}
}Practical Example: Shipment Service
Shipment Service with Circuit Breaker
public class ShipmentService {
private final CircuitBreaker circuitBreaker;
private final ShipmentProvider shipmentProvider;
public ShipmentService() {
// Circuit opens after 5 failures, waits 30 seconds before retry
this.circuitBreaker = new CircuitBreaker(5, 30000);
this.shipmentProvider = new ShipmentProvider();
}
public ShipmentResponse createShipment(String orderId, String destination, double weight) {
try {
// Execute shipment through circuit breaker
ShipmentResponse response = circuitBreaker.executeShipment(() -> {
return shipmentProvider.createShipment(orderId, destination, weight);
});
return response;
} catch (CircuitBreakerOpenException e) {
// Circuit is open - service unavailable
return new ShipmentResponse(false,
"Shipment service temporarily unavailable. Please try again later.",
null);
} catch (Exception e) {
// Shipment failed
return new ShipmentResponse(false,
"Shipment creation failed: " + e.getMessage(),
null);
}
}
}
Shipment Provider (External Service)
public class ShipmentProvider {
public ShipmentResponse createShipment(String orderId, String destination, double weight) throws Exception {
// Simulate network delay
Thread.sleep(100);
// Simulate random failures (30% chance)
if (Math.random() < 0.3) {
throw new Exception("Shipment provider API timeout");
}
// Generate tracking number
String trackingNumber = "TRK-" + System.currentTimeMillis();
return new ShipmentResponse(true,
"Shipment created to " + destination + " (" + weight + " kg)",
trackingNumber);
}
}Putting It All Together
public class Main {
public static void main(String[] args) {
ShipmentService shipmentService = new ShipmentService();
// Create multiple shipments
for (int i = 1; i <= 10; i++) {
ShipmentResponse response = shipmentService.createShipment(
"ORDER-" + i,
"New York, NY",
2.5);
System.out.println("Shipment " + i + ":");
System.out.println(" Success: " + response.isSuccess());
System.out.println(" Message: " + response.getMessage());
System.out.println(" Tracking Number: " + response.getTrackingNumber());
System.out.println();
try {
Thread.sleep(500); // Wait between requests
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
}
Example Output:
Shipment 1:
Success: true
Message: Shipment created to New York, NY (2.5 kg)
Tracking Number: TRK-1234567890123
Shipment 2:
Success: false
Message: Shipment creation failed: Shipment provider API timeout
Tracking Number: null
Shipment 3:
Success: false
Message: Shipment creation failed: Shipment provider API timeout
Tracking Number: null
Shipment 4:
Success: true
Message: Shipment created to New York, NY (2.5 kg)
Tracking Number: TRK-1234567890456
Shipment 5:
Success: false
Message: Shipment creation failed: Shipment provider API timeout
Tracking Number: null
Shipment 6:
Success: false
Message: Shipment service temporarily unavailable. Please try again later.
Tracking Number: null
... (circuit stays open for 30 seconds)When to Use Circuit Breaker Pattern
Understanding when to apply the Circuit Breaker pattern is crucial for making the right architectural decisions. Here's when it shines and when alternatives might be better:
ā Ideal Scenarios:
Your application depends on external services that can fail or become slow.
You need to prevent cascading failures across microservices.
You want to fail fast instead of waiting for timeouts on failing services.
You need to protect critical operations from resource exhaustion.
You're building distributed systems with multiple service dependencies.
You want automatic recovery testing when services become healthy again.
ā Skip It When:
Your application has no external dependencies or service calls.
The overhead of circuit breaker management outweighs benefits.
You need guaranteed delivery for every single request (use queues instead).
Your services have predictable, stable behaviour with no failure scenarios.
The added complexity doesn't justify the resilience benefits for your use case.
Production Deployment Considerations
1. Thread Safety for Concurrent Access
For production applications handling concurrent requests, use thread safe variables (AtomicInteger, AtomicLong) instead of regular primitives to prevent race conditions when multiple threads access the circuit breaker simultaneously.
2. Configuration and Monitoring
Choose appropriate failure thresholds and timeout durations based on service criticality, and add comprehensive logging to track circuit state changes, failure counts, and recovery events for diagnosing issues in production.
3. Fallback Strategies
When the circuit is open, provide meaningful fallback responses such as cached data, default values, or user-friendly error messages instead of just throwing exceptions to maintain graceful degradation.
The Circuit Breaker pattern is fundamental to building resilient distributed systems. By implementing intelligent circuit protection with proper monitoring and fallback strategies, you can prevent cascading failures and maintain system stability even when individual services experience issues.
