Composite Pattern: Build Hierarchical Structures with Uniform Interfaces

The Pain of Complex Hierarchical Structures

Picture this: You're building an organizational chart system. You need to represent complex hierarchies where individual employees and teams of managers should be treated uniformly. Your initial approach leads to endless type checking, scattered logic, and a maintenance nightmare.

Suddenly, you're writing code like this:

if (employee instanceof IndividualContributor) {
    // Handle individual employee
} else if (employee instanceof Manager) {
    // Handle manager with their team
    for (Employee subordinate : ((Manager) employee).getSubordinates()) {
        // Recursive handling with more type checking
    }
}

Sound familiar? The Composite pattern solves this exact headache by treating individual objects and compositions of objects uniformly through a common interface. The result? Clean, maintainable code that scales with your hierarchy's complexity.

Understanding the Composite Pattern

Think of it like managing a company: whether you're working with a single employee or an entire department, you can apply the same business operations: calculate payroll, conduct performance reviews, or generate reports. A department contains individual employees and other teams, but you manage them all using the same business processes.

This pattern promotes uniformity and simplicity while enabling complex hierarchical structures to be built and manipulated easily.

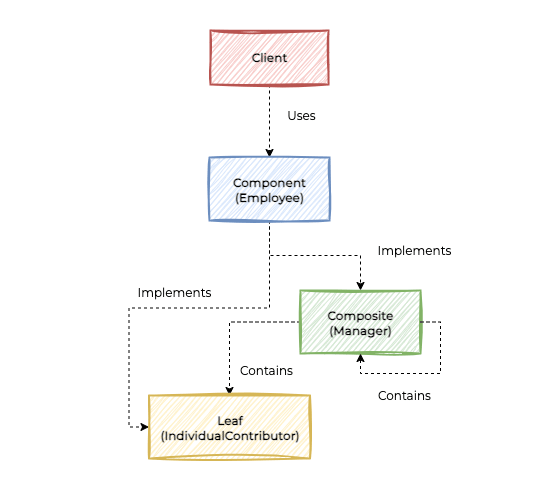

Core Components

• The Component Interface: The common interface that defines operations for both individual objects and compositions.

• The Leaf Implementation: Represents individual objects that have no children.

• The Composite Implementation: Represents compositions of objects and implements child-related operations.

Complete Java Implementation

Let's build an organizational chart system that demonstrates the Composite pattern's power in handling hierarchical structures.

The Component Interface

public abstract class Employee {
    protected String name;
    protected String title;

    public Employee(String name, String title) {
        this.name = name;
        this.title = title;
    }

    public abstract void display(int level);
    public abstract void addSubordinate(Employee employee);
    public abstract void removeSubordinate(Employee employee);
    public abstract List<Employee> getSubordinates();

    // Default implementation that works for both leaves and composites
    public int getTeamSize() {
        int size = 1; // Include self
        for (Employee subordinate : this.getSubordinates()) {
            size += subordinate.getTeamSize();
        }
        return size;
    }

    public String getName() { return name; }
    public String getTitle() { return title; }
}

The Leaf Implementation

public class IndividualContributor extends Employee {

    public IndividualContributor(String name, String title) {
        super(name, title);
    }

    @Override
    public void display(int level) {
        String indent = "  ".repeat(level);
        System.out.println(indent + "👤 " + name + " (" + title + ")");
    }

    @Override
    public void addSubordinate(Employee employee) {
        throw new UnsupportedOperationException("Individual contributors cannot have subordinates");
    }

    @Override
    public void removeSubordinate(Employee employee) {
        throw new UnsupportedOperationException("Individual contributors cannot have subordinates");
    }

    @Override
    public List<Employee> getSubordinates() {
        return new ArrayList<>(); // Individual contributors have no subordinates
    }
}

The Composite Implementation

public class Manager extends Employee {
    private List<Employee> subordinates = new ArrayList<>();

    public Manager(String name, String title) {
        super(name, title);
    }

    @Override
    public void display(int level) {
        String indent = "  ".repeat(level);
        System.out.println(indent + "👔 " + name + " (" + title + ") [Team: " + getTeamSize() + "]");
        for (Employee subordinate : subordinates) {
            subordinate.display(level + 1);
        }
    }

    @Override
    public void addSubordinate(Employee employee) {
        subordinates.add(employee);
    }

    @Override
    public void removeSubordinate(Employee employee) {
        subordinates.remove(employee);
    }

    @Override
    public List<Employee> getSubordinates() {
        return new ArrayList<>(subordinates);
    }
}

Client Code

public class OrganizationalChart {
    public static void main(String[] args) {
        // Create organizational structure
        Manager ceo = new Manager("Sarah Johnson", "CEO");
        Manager cto = new Manager("Mike Chen", "CTO");
        Manager engineeringManager = new Manager("Lisa Wang", "Engineering Manager");

        IndividualContributor dev1 = new IndividualContributor("Alex Smith", "Senior Developer");
        IndividualContributor dev2 = new IndividualContributor("Emma Davis", "Developer");
        IndividualContributor qa = new IndividualContributor("Tom Wilson", "QA Engineer");

        // Build hierarchy
        engineeringManager.addSubordinate(dev1);
        engineeringManager.addSubordinate(dev2);
        engineeringManager.addSubordinate(qa);
        cto.addSubordinate(engineeringManager);
        ceo.addSubordinate(cto);

        // Uniform interface - same operations for employees and managers
        System.out.println("=== Organizational Chart ===");
        ceo.display(0);

        System.out.println("\n=== Team Size Analysis ===");
        System.out.println("CTO team size: " + cto.getTeamSize() + " people");
        System.out.println("Engineering team size: " + engineeringManager.getTeamSize() + " people");
        System.out.println("Total company size: " + ceo.getTeamSize() + " people");
    }
}

Expected Output:

=== Organizational Chart ===
👔 Sarah Johnson (CEO) [Team: 6]
  👔 Mike Chen (CTO) [Team: 5]
    👔 Lisa Wang (Engineering Manager) [Team: 4]
      👤 Alex Smith (Senior Developer)
      👤 Emma Davis (Developer)
      👤 Tom Wilson (QA Engineer)

=== Team Size Analysis ===
CTO team size: 5 people
Engineering team size: 4 people
Total company size: 6 people

🚀 Get the Complete Implementation

The full code with advanced composite operations and traversal algorithms is available in our Design Patterns Repository.

# Clone and run the complete demo
git clone https://github.com/shift-elevate/design-patterns.git
cd design-patterns
mvn test -Dtest=CompositePatternTest

Real World Examples

The Composite pattern is extensively used in real HR and organizational management systems:

Enterprise HR Systems

Modern HR platforms use Composite patterns for organizational hierarchies:

// Enterprise HR system uses Composite pattern concepts
Organization org = new Organization();
Department engineering = new Department("Engineering");
Team backend = new Team("Backend");
Employee dev = new Employee("John", "Developer");

backend.addMember(dev);
engineering.addTeam(backend);
org.addDepartment(engineering);

// Uniform operations on both individuals and teams
org.calculateTotalSalary(); // Works for entire organization
engineering.calculateTotalSalary(); // Works for department
backend.calculateTotalSalary(); // Works for team

Project Management Tools

Modern project management tools use Composite patterns to represent project hierarchies, enabling uniform operations across projects, epics, stories, and tasks.

Business Intelligence Systems

BI tools use Composite patterns to represent organizational hierarchies for reporting, enabling drill-down capabilities from company level to individual employee level.

When to Use Composite Pattern

Understanding when to apply the Composite pattern is crucial for making the right architectural decisions. Here's when it shines and when alternatives might be better:

✅ Ideal Scenarios:

• You need to represent part-whole hierarchies (organizational charts, team structures, nested data).

• You want clients to treat individual objects and compositions uniformly.

• You need to perform operations that apply to both individual objects and collections.

• You're building tree-like structures with recursive operations.

• You want to simplify client code by eliminating type checking.

❌ Skip It When:

• Your hierarchy is simple and unlikely to change.

• Performance is critical and the overhead of the composite structure is too high.

• You need to enforce strict type safety between leaves and composites.

• The operations on leaves and composites are fundamentally different.

Next Steps: Apply Composite in Your Project

Ready to implement the Composite pattern in your own projects? Here's a structured approach to get you started:

1. Identify Hierarchical Structures: Look for part whole relationships in your domain (like organizational charts, team structures, nested data).

2. Define Common Interface: Create an interface that works for both individual items and collections.

3. Implement Leaf Classes: Build classes for individual objects (like individual contributors).

4. Implement Composite Classes: Build classes that can contain other components (like managers).

5. Test Uniform Operations: Ensure the same operations work on both leaves and composites.
