Facade Pattern: Simplify Complex Subsystems with Clean Interfaces

The Pain of Complex Subsystem Integration

Picture this: You're building a modern code editor that needs to handle syntax highlighting, code completion, debugging, and git integration. Your initial approach seems logical: coordinate each subsystem directly in your client code.

Then reality hits. Your processCode() method balloons to 50+ lines of complex subsystem coordination. Every time you want to add a new feature, you're juggling syntax highlighters, git status checks, code completion engines, and debugger sessions. The result? A tangled mess of dependencies, scattered error handling, and code that's impossible to test or maintain.

The Facade pattern solves this headache by providing a simplified interface to a complex subsystem. The result? Clean, maintainable client code that focuses on business logic rather than subsystem complexity.

Understanding the Facade Pattern

Think of it like an IDE's main interface: instead of dealing with syntax highlighting, git integration, code completion, and debugging separately, you have one unified editor that handles all your coding needs.

This pattern promotes Simplicity, Decoupling, and Maintainability while hiding implementation details from clients.

The Complexity Nightmare: Before Facade

Here's what happens when you try to coordinate multiple subsystems directly in your client code:

// The complexity nightmare
public class CodeEditor {
    public void openFile(String filePath) {
        // Syntax highlighting
        SyntaxHighlighter highlighter = new SyntaxHighlighter();
        LanguageDetector detector = new LanguageDetector();
        String language = detector.detectLanguage(filePath);
        String content = readFileContent(filePath);
        List<Token> tokens = highlighter.tokenize(content, language);
        List<HighlightedLine> highlightedLines = highlighter.highlight(tokens);

        // Code completion setup
        CodeCompletionService completion = new CodeCompletionService();
        ProjectAnalyzer analyzer = new ProjectAnalyzer();
        ProjectContext context = analyzer.analyzeProject(filePath);
        completion.setContext(context);

        // Git integration
        GitService git = new GitService();
        GitRepository repo = git.findRepository(filePath);
        if (repo != null) {
            GitStatus status = git.getFileStatus(filePath);
            git.updateFileWatcher(filePath);
        }

        // Debugger setup
        DebuggerService debugger = new DebuggerService();
        DebuggerConfig config = debugger.createConfig(filePath, language);
        debugger.initialize(config);

        // Update UI
        EditorUI ui = new EditorUI();
        ui.displayContent(highlightedLines);
        ui.setupCompletion(completion);
        ui.showGitStatus(status);
        ui.enableDebugging(debugger);
    }

    private String readFileContent(String filePath) {
        // Simplified file reading
        return "public class Example { }";
    }
}

This approach creates several problems:

• Tight coupling: Client code depends directly on multiple subsystems.

• Complex error handling: Rollback logic scattered throughout the method.

• Poor maintainability: Changes to any subsystem require client code updates.

• Testing difficulties: Hard to test individual components in isolation.

The Facade pattern eliminates these issues by providing a clean, unified interface.

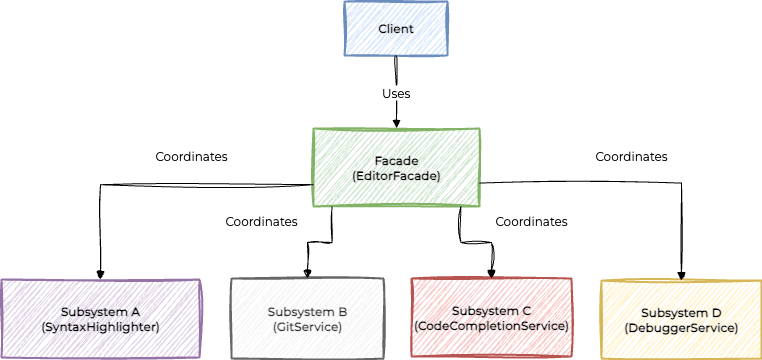

Core Components

• Subsystem Components: The complex components that the facade coordinates.

• The Facade Implementation: Provides a simplified interface to the complex subsystem.

Complete Java Implementation

Let's build a modern code editor that demonstrates the Facade pattern's power in simplifying complex IDE operations.

Subsystem Components

// Syntax Highlighting Subsystem
public class SyntaxHighlighter {

    public List<String> highlightFile(String filePath) {
        System.out.println("Applying syntax highlighting to: " + filePath);
        return Arrays.asList("public class Example", "    // highlighted code");
    }
}

// Git Integration Subsystem
public class GitService {

    public void getFileStatus(String filePath) {
        System.out.println("Checking git status for: " + filePath);
    }

    public boolean isGitRepository(String filePath) {
        return filePath.contains("src");
    }

    public void stageFile(String filePath) {
        System.out.println("Staging file: " + filePath);
    }
}

// Code Completion Subsystem
public class CodeCompletionService {

    public List<String> getSuggestions(String filePath, int line, int column) {
        System.out.println("Getting code completion suggestions...");
        return Arrays.asList("public", "class", "method");
    }
}

// Debugger Subsystem
public class DebuggerService {

    public void startDebugging(String filePath) {
        System.out.println("Starting debugger for: " + filePath);
    }

    public void setBreakpoint(String filePath, int line) {
        System.out.println("Setting breakpoint at line " + line + " in " + filePath);
    }

    public void continueExecution() {
        System.out.println("Continuing debugger execution...");
    }
}

The Facade Implementation

public class EditorFacade {
    private SyntaxHighlighter syntaxHighlighter;
    private GitService gitService;
    private CodeCompletionService codeCompletionService;
    private DebuggerService debuggerService;

    public EditorFacade() {
        this.syntaxHighlighter = new SyntaxHighlighter();
        this.gitService = new GitService();
        this.codeCompletionService = new CodeCompletionService();
        this.debuggerService = new DebuggerService();
    }

    public EditorResult openFile(String filePath) {
        try {
            if (filePath == null || filePath.trim().isEmpty()) {
                return new EditorResult(false, "Failed to open file: File path cannot be null or empty");
            }

            List<String> highlightedLines = syntaxHighlighter.highlightFile(filePath);

            if (gitService.isGitRepository(filePath)) {
                gitService.getFileStatus(filePath);
            }

            List<String> suggestions = codeCompletionService.getSuggestions(filePath, 1, 1);
            debuggerService.startDebugging(filePath);

            return new EditorResult(true, "File opened successfully",
                new EditorState(highlightedLines, suggestions));

        } catch (Exception e) {
            return new EditorResult(false, "Failed to open file: " + e.getMessage());
        }
    }

    public void setBreakpoint(String filePath, int line) {
        debuggerService.setBreakpoint(filePath, line);
    }

    public void continueDebugging() {
        debuggerService.continueExecution();
    }

    public List<String> getCodeSuggestions(String filePath, int line, int column) {
        return codeCompletionService.getSuggestions(filePath, line, column);
    }

    public void stageFile(String filePath) {
        if (gitService.isGitRepository(filePath)) {
            gitService.stageFile(filePath);
        }
    }
}

Client Code

public class CodeEditorClient {
    public static void main(String[] args) {
        // Create facade
        EditorFacade editorFacade = new EditorFacade();

        // Open file with simple facade interface
        EditorResult result = editorFacade.openFile("src/main/java/Example.java");

        System.out.println("File Result: " + result.getMessage());

        if (result.isSuccess()) {
            EditorState state = result.getState();
            System.out.println("Highlighted lines: " + state.getHighlightedLines().size());
            for (String line : state.getHighlightedLines()) {
                System.out.println("  " + line);
            }
            System.out.println("Code suggestions: " + state.getSuggestions().size());
        }

        List<String> suggestions = editorFacade.getCodeSuggestions("Example.java", 5, 10);
        System.out.println("Suggestions at line 5: " + suggestions.size());
        for (String suggestion : suggestions) {
            System.out.println("  - " + suggestion);
        }

        editorFacade.setBreakpoint("Example.java", 15);
        editorFacade.stageFile("Example.java");
        editorFacade.continueDebugging();
    }
}

Expected Output:

Applying syntax highlighting to: src/main/java/Example.java
Checking git status for: src/main/java/Example.java
Getting code completion suggestions...
Starting debugger for: src/main/java/Example.java
File Result: File opened successfully
Highlighted lines: 3
  public class Example
      // highlighted code
Code suggestions: 3
Getting code completion suggestions...
Suggestions at line 5: 3
  - public
  - class
  - method
Setting breakpoint at line 15 in Example.java
Staging file: Example.java
Continuing debugger execution...

🚀 Get the Complete Implementation

The full code with additional shapes and renderers is available in our Design Patterns Repository.

# Clone and run the complete demo
git clone https://github.com/shift-elevate/design-patterns.git
cd design-patterns
mvn test -Dtest=FacadePatternTest

Extending the Facade: Add New IDE Features

The Facade pattern makes it easy to add new features without changing client code. The repository shows how simple this is:

1. Create a new subsystem (like code formatting or project search)

2. Add it to the facade with a simple method

3. Client code stays the same - the facade handles everything

Try it yourself: Fork the repository and add features like code formatting, project search, or build automation. The facade will coordinate everything while keeping your code clean!

Real World Examples

1. API Gateway Patterns

Microservices architectures use facades to simplify external API interactions:

// API Gateway facade for external services
public class ExternalAPIFacade {
    private PaymentGatewayAPI paymentAPI;
    private ShippingAPI shippingAPI;
    private NotificationAPI notificationAPI;

    public ExternalAPIFacade() {
        this.paymentAPI = new PaymentGatewayAPI();
        this.shippingAPI = new ShippingAPI();
        this.notificationAPI = new NotificationAPI();
    }

    public PaymentResult processPayment(PaymentRequest request) {
        // Handle authentication, retries, error handling
        try {
            return paymentAPI.charge(request);
        } catch (Exception e) {
            // Retry logic, fallback handling
            return handlePaymentFailure(request, e);
        }
    }

    public ShippingLabel createShippingLabel(ShippingRequest request) {
        // Coordinate with shipping provider
        return shippingAPI.createLabel(request);
    }

    public void sendNotification(NotificationRequest request) {
        // Route to appropriate notification service
        if (request.getType() == NotificationType.EMAIL) {
            notificationAPI.sendEmail(request);
        } else if (request.getType() == NotificationType.SMS) {
            notificationAPI.sendSMS(request);
        }
    }

    private PaymentResult handlePaymentFailure(PaymentRequest request, Exception e) {
        // Complex error handling logic
        return new PaymentResult(false, "Payment processing failed");
    }
}

2. Configuration Management

Applications use facades to simplify configuration access:

// Configuration facade for simplified settings access
public class ConfigurationFacade {
    private DatabaseConfig dbConfig;
    private EmailConfig emailConfig;
    private SecurityConfig securityConfig;
    private CacheConfig cacheConfig;

    public ConfigurationFacade() {
        this.dbConfig = new DatabaseConfig();
        this.emailConfig = new EmailConfig();
        this.securityConfig = new SecurityConfig();
        this.cacheConfig = new CacheConfig();
    }

    public DatabaseSettings getDatabaseSettings() {
        return new DatabaseSettings(
            dbConfig.getHost(),
            dbConfig.getPort(),
            dbConfig.getUsername(),
            dbConfig.getPassword()
        );
    }

    public EmailSettings getEmailSettings() {
        return new EmailSettings(
            emailConfig.getSmtpHost(),
            emailConfig.getSmtpPort(),
            emailConfig.getUsername(),
            emailConfig.getPassword()
        );
    }

    public SecuritySettings getSecuritySettings() {
        return new SecuritySettings(
            securityConfig.getJwtSecret(),
            securityConfig.getSessionTimeout(),
            securityConfig.getMaxLoginAttempts()
        );
    }

    public boolean isFeatureEnabled(String featureName) {
        // Centralized feature flag checking
        return cacheConfig.getFeatureFlags().contains(featureName);
    }
}

3. Multimedia Processing

// Multimedia processing facade
public class MediaProcessingFacade {
    private AudioProcessor audioProcessor;
    private VideoProcessor videoProcessor;
    private CodecManager codecManager;
    private FormatConverter formatConverter;

    public MediaProcessingFacade() {
        this.audioProcessor = new AudioProcessor();
        this.videoProcessor = new VideoProcessor();
        this.codecManager = new CodecManager();
        this.formatConverter = new FormatConverter();
    }

    public ProcessedMedia convertVideo(String inputFile, String outputFormat) {
        // Coordinate complex video conversion process
        VideoFile input = videoProcessor.load(inputFile);
        VideoFile processed = videoProcessor.process(input);
        AudioFile audio = audioProcessor.extract(input);
        AudioFile processedAudio = audioProcessor.process(audio);

        return formatConverter.convert(processed, processedAudio, outputFormat);
    }

    public Thumbnail generateThumbnail(String videoFile) {
        // Simplified thumbnail generation
        VideoFile video = videoProcessor.load(videoFile);
        return videoProcessor.extractFrame(video, 5.0); // 5 seconds in
    }
}

When to Use Facade Pattern

Understanding when to apply the Facade pattern is crucial for making the right architectural decisions. Here's when it shines and when alternatives might be better:

✅ Ideal Scenarios:

• You have a complex subsystem with many interdependent classes.

• You want to provide a simple interface to a complex system.

• You need to decouple client code from subsystem implementation details.

• You want to reduce dependencies between subsystems and clients.

• You're building a library or framework that needs to hide complexity.

❌ Skip It When:

• The subsystem is simple and doesn't need abstraction.

• You need direct access to subsystem functionality.

• Performance is critical and the facade overhead is too high.

• The subsystem interface is already simple and well-designed.

Next Steps: Apply Facade in Your Project

Ready to implement the Facade pattern in your own projects? Here's a structured approach to get you started:

1. Identify Complex Subsystems: Look for areas where client code is overwhelmed by subsystem complexity.

2. Define Common Use Cases: Identify the most frequent operations clients need to perform.

3. Design the Facade Interface: Create a simple, intuitive interface for these operations.

4. Implement Subsystem Coordination: Build the facade to handle the complex coordination logic.

5. Test with Real Clients: Ensure the facade actually simplifies client code.

The Facade pattern provides a powerful way to simplify complex system interactions. By creating clean, unified interfaces that hide subsystem complexity, you can build more maintainable and testable applications that are easier for developers to work with.
