Prototype Pattern: Clone Complex Objects Instantly in Java

The Pain of Repetitive Object Creation

Picture this: You're building a graphics editor where users need to create hundreds of shapes with identical properties—same color, size, and styling. Every time a user wants to duplicate a shape, your code painstakingly calls the constructor, sets each property individually, and risks missing a crucial configuration. The result? Slow performance, memory waste, and error prone code filled with repetitive instantiation logic.

What if you could create new objects by simply cloning a pre-configured prototype? The Prototype pattern lets you do exactly that—instantly duplicating complex objects, saving time, memory, and eliminating the risk of configuration errors.

Understanding the Prototype Pattern

The Prototype pattern enables you to create new objects by copying an existing instance (the prototype), rather than instantiating new ones from scratch. This is especially useful when object creation is expensive, or when you need many similar objects with only slight variations.

Think of it like duplicating a slide in PowerPoint: you copy an existing slide (with all its formatting and content) and tweak only what you need. No need to start from scratch every time.

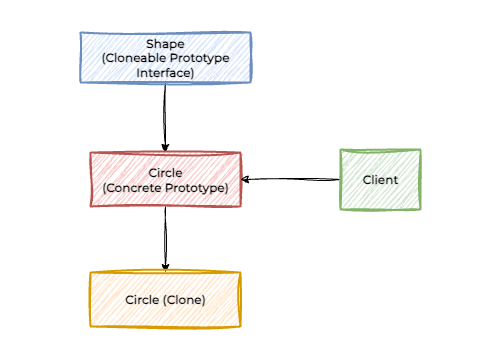

Core Components

• Prototype Interface: Declares the clone() method for duplicating objects

• Concrete Prototype: Implements the cloning logic, handling deep or shallow copies as needed

Complete Java Implementation

Let’s build a document editor where each shape can be cloned efficiently using the Prototype pattern.

Prototype Interface

public interface Shape extends Cloneable {
    Shape clone();
    void draw();
}

Concrete Prototype

public class Circle implements Shape {
    private int radius;
    private String color;

    public Circle(int radius, String color) {
        this.radius = radius;
        this.color = color;
    }

    @Override
    public Shape clone() {
        return new Circle(this.radius, this.color);
    }

    @Override
    public void draw() {
        System.out.println("Drawing a " + color + " circle with radius " + radius);
    }
}

public class Rectangle implements Shape {
    private int width, height;
    private String color;

    public Rectangle(int width, int height, String color) {
        this.width = width;
        this.height = height;
        this.color = color;
    }

    @Override
    public Shape clone() {
        return new Rectangle(this.width, this.height, this.color);
    }

    @Override
    public void draw() {
        System.out.println("Drawing a " + color + " rectangle " + width + "x" + height);
    }
}

Client Code

public class PrototypeDemo {
    public static void main(String[] args) {
        Shape circlePrototype = new Circle(10, "red");
        Shape rectanglePrototype = new Rectangle(20, 10, "blue");

        // Clone shapes
        Shape circle1 = circlePrototype.clone();
        Shape circle2 = circlePrototype.clone();
        Shape rectangle1 = rectanglePrototype.clone();

        circle1.draw();
        circle2.draw();
        rectangle1.draw();
    }
}

Expected Output:

Drawing a red circle with radius 10
Drawing a red circle with radius 10
Drawing a blue rectangle 20x10

🚀 Get the Complete Implementation

The full code with comprehensive cloning examples is available in our Design Patterns Repository.

# Clone and run the complete demo
git clone https://github.com/shift-elevate/design-patterns.git
cd design-patterns
mvn test -Dtest=PrototypePatternTest

Deep vs. Shallow Cloning

The Prototype pattern can use either shallow or deep copies. In Java, the default Object.clone() provides a shallow copy, but you can implement deep cloning by manually copying nested objects.

Example: Deep Cloning with Nested Objects

public class ComplexShape implements Shape {
    private List<Point> points;
    private String label;

    public ComplexShape(List<Point> points, String label) {
        this.points = new ArrayList<>(points); // Defensive copy
        this.label = label;
    }

    @Override
    public Shape clone() {
        // Deep copy of points
        List<Point> clonedPoints = points.stream()
            .map(point -> new Point(point.getX(), point.getY()))
            .collect(Collectors.toList());
        return new ComplexShape(clonedPoints, label);
    }

    @Override
    public void draw() {
        System.out.println("Drawing complex shape: " + label);
    }
}

Real World Examples

The Prototype pattern is widely used across different industries to solve performance and efficiency challenges. Let's explore real world implementations:

1. Game Development: Enemy and NPC Cloning

Games often need to spawn thousands of similar enemies or NPCs. Instead of creating each from scratch, a prototype is cloned and customized as needed.

// Game entity prototype system
public class EnemyPrototype implements Cloneable {
    private String type;
    private int health;
    private int damage;
    private List<Weapon> weapons;

    public EnemyPrototype(String type, int health, int damage) {
        this.type = type;
        this.health = health;
        this.damage = damage;
        this.weapons = new ArrayList<>();
    }

    @Override
    public EnemyPrototype clone() {
        EnemyPrototype clone = new EnemyPrototype(type, health, damage);
        // Deep copy weapons
        for (Weapon weapon : weapons) {
            clone.weapons.add(weapon.clone());
        }
        return clone;
    }
}

// Usage in game engine
public class GameEngine {
    private final Map<String, EnemyPrototype> enemyPrototypes = new HashMap<>();

    public void spawnEnemies(String type, int count) {
        EnemyPrototype prototype = enemyPrototypes.get(type);
        for (int i = 0; i < count; i++) {
            EnemyPrototype enemy = prototype.clone();
            // Customize individual enemy properties
            enemy.setPosition(generateRandomPosition());
            addToGameWorld(enemy);
        }
    }
}

2. Workflow Engines: Task Templates

Workflow systems use prototypes for task templates. New tasks are cloned from a prototype and then customized for each workflow instance.

// Workflow task prototype
public class TaskPrototype implements Cloneable {
    private String name;
    private String description;
    private List<String> requiredFields;
    private Map<String, Object> defaultValues;

    @Override
    public TaskPrototype clone() {
        TaskPrototype clone = new TaskPrototype();
        clone.name = this.name;
        clone.description = this.description;
        clone.requiredFields = new ArrayList<>(this.requiredFields);
        clone.defaultValues = new HashMap<>(this.defaultValues);
        return clone;
    }
}

// Workflow engine using prototypes
public class WorkflowEngine {
    public Task createTaskFromTemplate(String templateName, Map<String, Object> customValues) {
        TaskPrototype template = getTemplate(templateName);
        TaskPrototype task = template.clone();

        // Apply custom values
        task.getDefaultValues().putAll(customValues);
        return new Task(task);
    }
}

3. Serialization and Caching

Some frameworks use prototypes to cache pre-configured objects, cloning them for fast retrieval and reduced setup time.

When to Use Prototype Pattern

Understanding when to apply the Prototype pattern is crucial for making the right architectural decisions. Here's when it shines and when alternatives might be better:

Ideal Scenarios:

• Object creation is expensive (complex initialization, resource allocation).

• Many similar objects are needed (e.g., game entities, document elements).

• Objects are configured at runtime and need to be duplicated.

• You want to avoid subclassing for every variation.

Skip It When:

• Objects are simple and cheap to create.

• Cloning logic is more complex than construction.

• Immutability is required (prefer value objects or records).

Next Steps: Apply Prototype in Your Project

Ready to implement the Prototype pattern in your own projects? Here's a structured approach to get you started:

1. Identify Expensive Creations: Find objects that are costly to instantiate or configure.

2. Extract Prototypes: Implement a clone() method for these objects.

3. Refactor Creation Logic: Use prototypes for duplication instead of new instantiation.

4. Test Thoroughly: Ensure clones are independent and correctly configured.

The Prototype pattern transforms repetitive, error prone object creation into a fast, reliable process. By leveraging cloning, you can optimize performance and simplify your codebase: especially in systems with high object churn.
